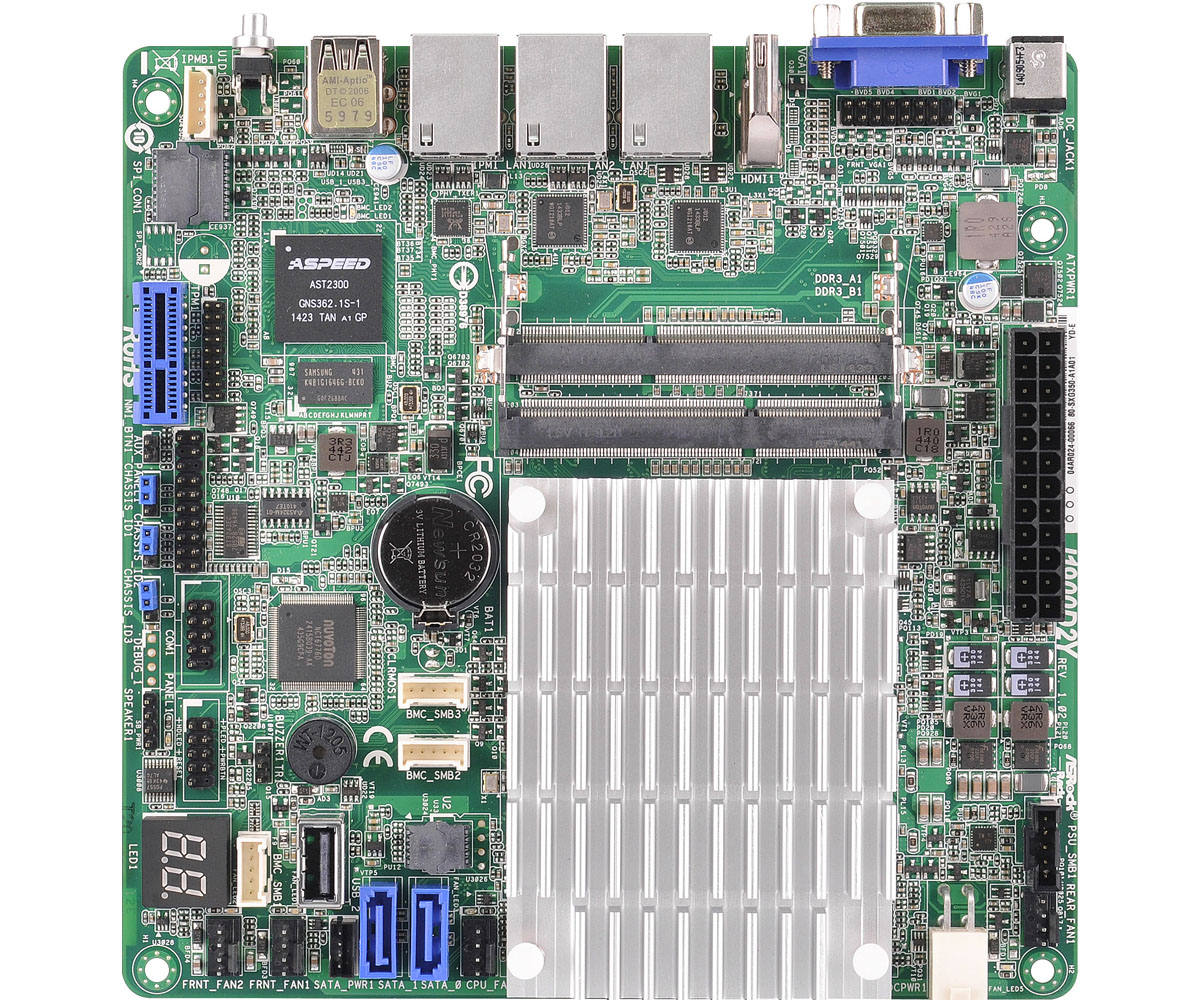

| MB Physical Status |
| Form Factor |
- mini-ITX |
| Dimensions |
- 6.7'' x 6.7''(17.0 cm x 17.0 cm) |
| Processor System |
| CPU |
- Support Intel® Quad-Core Processor J1900(2 GHz) |
| Chipset |
- SoC |
| System Memory |
| Capacity |
- 2 x DDR3/DDR3L SO-DIMM slots |
| Type |
- Dual Channel DDR3/DDR3L memory technology
- Supports DDR3/DDR3L 1333/1066 non-ECC, un-buffered memory
- Max. capacity of system memory:16GB |
| Voltage |
- 1.35V /1.5V |
| Expansion Slot |
| PCIe 2.0 x 1 |
- 1 slots |
| Storage |
| SATA Controller |
- J1900: 2x SATA2 3Gb/s |
| Ethernet |
| Interface |
- 1000 /100 /10 Mbps |
| LAN Controller |
- 2 x RJ45 by Intel® i210
- 1 x RJ45 Dedicated IPMI LAN port
- Supports Wake-On-LAN
- Supports Energy Efficient Ethernet 802.3az
- Supports Dual LAN with Teaming function
- Supports PXE |
| Management |
| BMC Controller |
- ASPEED AST2300 |
| IPMI Dedicated LAN |
- 1 x Realtek RTL8211E for dedicated management GLAN |
| Features |
- Watch Dog
- NMI |
| Graphics |
| Controller |
- ASPEED AST2300 |
| VRAM |
- DDR3 16MB |

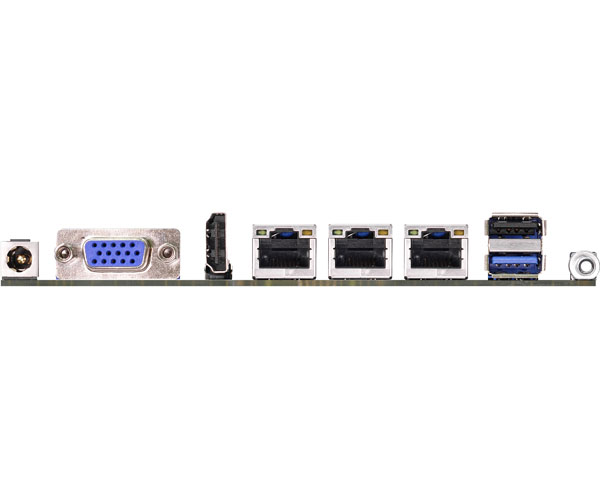

| Rear Panel I/O |
| VGA Port |
- 1 x D-Sub |
| USB 2.0 Port |
- 1 |
| USB 3.0 Port |
- 1 |
| HDMI |
- 1 |
| Lan Port |
- RJ45: 2 + 1 (IPMI)
- LAN Ports with LED (ACT/LINK LED and SPEED LED) |
| UID Button/UID LED |
- 1 |
| DC in |
- 1x DC Jack |
| Power connector in Front side |
| Power connector |
- 4-pin 12V/19V input |
| Internal Connector |
| Auxiliary Panel Header |
- 1 (include chassis intrusion, location button & LED, front LAN LED, system fault LED) |
| TPM Header |
- 1 |
| IPMB Header |
- 1 |
| Buzzer |
- 1 |
| Fan Header |
- 4 x4-pin |
| ATX Power |
- 1 (24-pin) |
| Type A USB 2.0 Port |
- 1 |
| PSU SMB Header |
- 1 |
| Speaker |
- 1 |
| System BIOS |
| BIOS Type |
- 64Mb AMI UEFI Legal BIOS |
| BIOS Features |
- Plug and Play (PnP)
- ACPI 2.0 Compliance Wake Up Events
- SMBIOS 2.8.0 Support
- ASRock Rack Instant Flash |
| Hardware Monitor |
| Temperature |
- CPU Temperature Sensing
- System Temperature Sensing
- System Inlet Temperature Sensing
- Card Side Temperature Sensing |
| Fan |
- CPU/Rear/Front Fan Tachometer
- CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
- CPU/Rear/Front Fan Multi-Speed Control |
| Voltage |
- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, 1.05V_PCH, +BAT, 3VSB, 5VSB |
| Support OS |
| OS |
Microsoft Windows
- Server 2008 R2 (64 bit)
- Server 2012 (64 bit)
- Server 2012 R2 (64 bit)
Linux
- RedHat Enterprise Linux Server 5.10/6.5(32 / 64 bit)
- CentOS 5.10 / 6.5 (32 / 64 bit)
- SUSE Enterprise Linux Server 11 SP3 (32 / 64 bit)
- FreeBSD 9.1 (32 / 64 bit)
- Fedora core 19 (64 bit)
- Ubuntu 12.04.2 (64 bit) / 12.10 (64 bit)
Virtual
- VMWare ESXi 5.5 |
| Environment |
| Temperature |
Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
