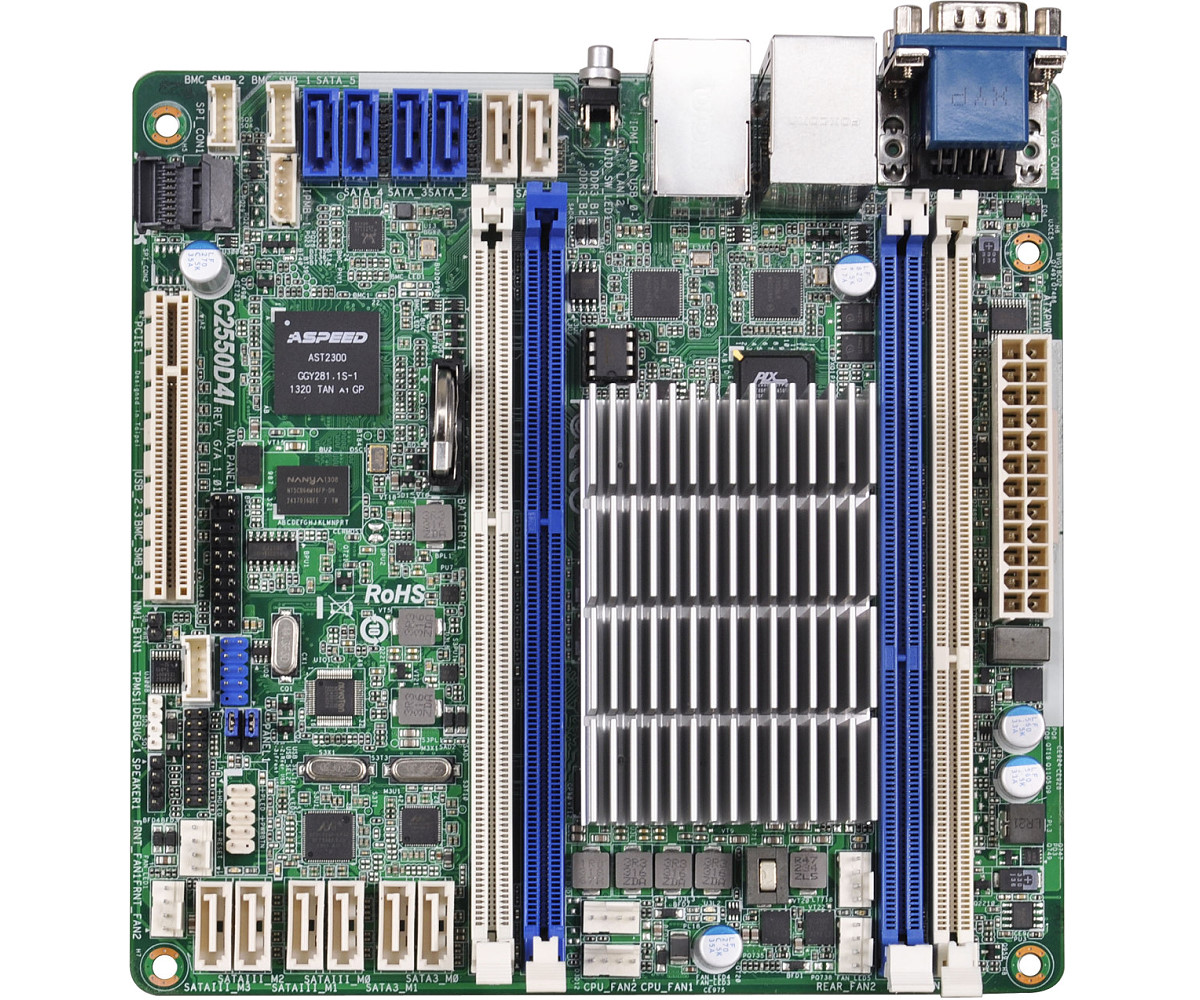

| MB Physical Status |
| Form Factor |
- Mini ITX |
| Dimensions |
- 6.7'' x 6.7'' (17.02 cm x17.02 cm) |
| Processor System |
| CPU |
- Intel® Quad-Core Avoton C2550 Processor |
| Socket |
- FCBGA1283 SOC |
| System Memory |
| Capacity |
- 4 x 240-pin DDR3 DIMM slots
- Support up to 64GB DDR3 UDIMM |
| Type |
- Dual Channel DDR3 memory technology
- Supports DDR3 1600/1333 ECC/non-ECC Unbuffered UDIMM |
| Voltage |
- 1.5V, 1.35V |
| Expansion Slot |
| PCIe 2.0 x 8 |
- 1 slot (x8 mode) |
| Storage |
| SATA Controller |
- Intel® C2550 : 2 x SATA3 6.0 Gb/s, 4 x SATA2 3.0 Gb/s |
| Additional Storage Controller |
- Marvell SE9172: 2 x SATA3 6.0 Gb/s, support RAID 0, 1
- Marvell SE9230: 4 x SATA3 6.0 Gb/s, support RAID 0, 1, 10 (To disable Marvell SE 9230 HW Raid, please click here) |
| Ethernet |
| Interface |
- Gigabit LAN 10/100/1000 Mb/s |
| LAN Controller |
- 2 x Intel® i210
- Supports Wake-On-LAN
- Supports Energy Efficient Ethernet 802.3az
- Supports Dual LAN with Teaming function
- Supports PXE |
| Management |
| BMC Controller |
- ASPEED AST2300 : IPMI (Intelligent Platform Management Interface) 2.0 with iKVM support |
| IPMI Dedicated LAN |
- 1 x Realtek RTL8211E for dedicated management LAN |
| Features |
- Watch Dog
- NMI |
| Graphics |
| Controller |
- ASPEED AST2300 |
| VRAM |
- DDR3 16MB |
| Output |
- Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz |
| Rear Panel I/O |
| VGA Port |
- D-sub x 1 |
| USB 2.0 Port |
- 2 |
| Lan Port |
- 2 x RJ45 Gigabit Ethernet LAN ports
- 1 x RJ45 Dedicated IPMI LAN port
- LAN Ports with LED (ACT/LINK LED and SPEED LED) |
| Serial Port |
- 1 (COM1) |
| UID Button/UID LED |
- 1 |
| Internal Connector |
| Auxiliary Panel Header |
- 1 (include chassis intrusion, location button & LED, front LAN LED) |
| IPMB Header |
- 1 |
| Fan Header |
- 6 x 4-pin |
| ATX Power |
- 1 (24-pin) |
| USB 2.0 Header |
- 1 (support 1 via headers or 2 via headers controlled by USB_SEL1 and USB_SEL2 jumper) |
| Front Panel |
- 1 |
| System BIOS |
| BIOS Type |
- 64Mb AMI UEFI Legal BIOS |
| BIOS Features |
- Plug and Play (PnP)
- ACPI 1.1 Compliance Wake Up Events
- SMBIOS 2.3.1 Support
- DRAM Voltage Multi-adjustment
- ASRock Instant Flash |
| Hardware Monitor |
| Temperature |
- CPU Temperature Sensing
- Motherboard Temperature Sensing |
| Fan |
- CPU/Rear/Front Fan Tachometer
- CPU Quiet Fan (Allow CPU Fan Speed Auto-Adjust by CPU Temperature)
- CPU/Rear/Front Fan Multi-Speed Control |
| Voltage |
- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, +1.1V,+1.0V, +BAT, 3VSB, 5VSB |
| Support OS |
| OS |
Microsoft Windows
- Server 2008 R2 (x64)
- Server 2012 (x64)
Linux
- RedHat Enterprise Linux Server 5.5/6.4 (x32 and x64)
- CentOS 5.5 / 6.4 (x32 and x64)
- SUSE Enterprise Linux Server 11 SP1 (x32 and x64)
- FreeBSD 9.1 (x32/x64)
- Fedora core 18 (x64)
- Ubuntu 12.04/12.10 (x64)
Virtual
- VMWare ESXi 5.1 (Marvell SE9230 and Marvell SE9172 has no driver can support VMWare) |
| Environment |
| Temperature |
- Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
* Install a CPU Fan when the airflow through the heatsink is below 2CFM. |
