DX517

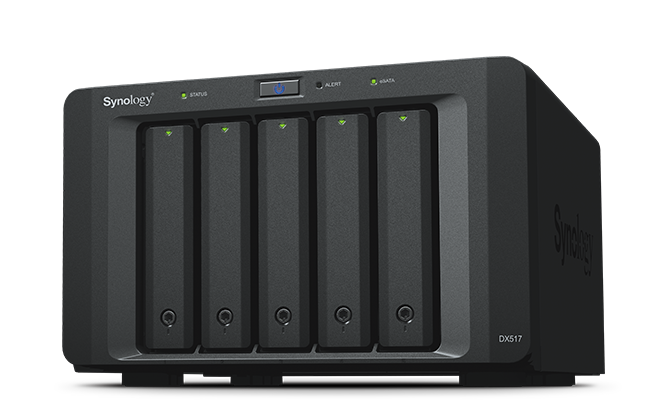

DX517 image click to zoom

  • Параметри5 bay Expansion unit for Increasing Capacity of the Synology DS1817+, DS1517+, DS918+, DS718+, DS1817, DS1517, NVR1218 - DX517
  • Други:  5x 3.5" or 2.5" HDD bays, hotswap HDD, eSATA port, eSATA cable
  • Гаранция36m
  • Наличностограничено количество
  • Цена с включен ДДС: 1030.80 BGN

Технически данни

Applied Models
  • DS1817+
  • DS1517+
  • DS918+
  • DS718+
  • DS1817
  • DS1517
  • NVR1218
Storage

Drive Bays 5
Compatible Drive Type* (See all supported drives)
  • 3.5" SATA HDD
  • 2.5" SATA HDD
  • 2.5" SATA SSD
Hot Swappable Drive yes
External Ports

eSATA port 1
Appearance

Size (Height x Width x Depth) 157 mm x 248 mm x 233 mm
Weight 3.91 kg
Power

Power Recovery Synchronized with the Synology DiskStation
Power Supply Unit / Adapter 200W
AC Input Power Voltage 100V to 240V AC
Power Frequency 50/60 Hz, Single Phase
Power Consumption* 29.9 W (Access)
2.4 W (HDD Hibernation)
British Thermal Unit 102.02 BTU/hr (Access)
8.19 BTU/hr (HDD Hibernation)
Note Power consumption is measured when fully loaded with Western Digital 1TB WD10EFRX hard drive(s).
Temperature

Operating Temperature 5°C to 40°C (40°F to 104°F)
Storage Temperature -10°C to 70°C (15°F to 155°F)
Relative Humidity 5% to 95% RH

Others

System Fan 80 mm x 80 mm x 2 pcs
Easy Replacement System Fan yes
Noise Level* 21.5 dB(A)
Note Noise Level Testing Environment: Fully loaded with Seagate 1TB ST31000520AS hard drive(s) in idle; Two G.R.A.S. Type 40AE microphones, each set up at 1 meter away from the Synology NAS front and rear; Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
Certification
  • FCC Class B
  • CE Class B
  • BSMI Class B

Warranty

3 Year Hardware Warranty

Environment & Packaging

Environment RoHS Compliant
Packaging Content
  • Main Unit X 1
  • Accessory Pack X 1
  • AC Power Cord X 1
  • Expansion Cable: eSATA X 1
  • Quick Installation Guide X 1
