ESDS 1012RC

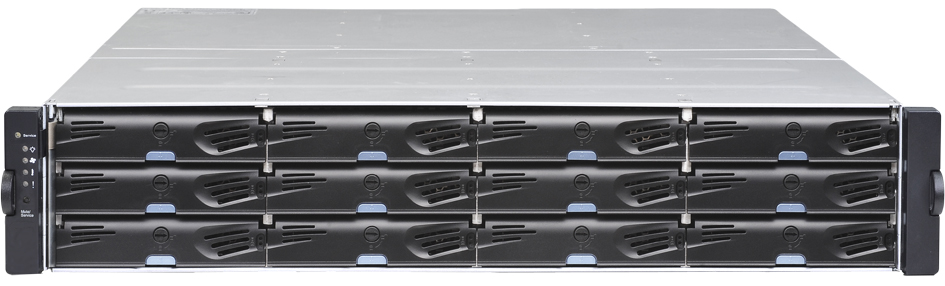

ESDS 1012RC image

  • ПараметриEonStor DS 1000 2U/12bay, Dual Redundant controller subsystem including 2x6Gb SAS EXP. Ports, 8x1G iSCSI ports +2x host board slot(s), 2x2GB, 2x(PSU+FAN Module), 2x (Super capacitor+Flash module), 12xHDD trays and 1xRackmount kit
  • Гаранция36 m
  • Наличностс поръчка
  • Цена с включен ДДС: 11084.96 BGN

Технически данни

Host Ports

  • Onboard Gb/s ports
    • Eight;1Gb/s iSCSI ports (4;per controller)
  • More host options:
    • Four 16Gb/s Fibre Channel ports (2 per controller)
    • Eight 8Gb/s Fibre Channel ports (4 per controller)
    • Four 10Gb/s iSCSi ports/ SFP+ or RJ-45 (2 per controller)
    • Eight 1Gb/s iSCSI ports (4 per controller)
    • Four 6Gb/s SAS ports (2 per controller)

Storage Controller

Dual redundant controllers

Cache Memory

Default 4GB (2x2GB), up to 8GB (4x2GB), 16GB (4x4GB);or;32GB (4x8GB)

** The default capacity may vary by region; please contact our sales representatives for details

Drive Connectivity

  • 6Gb/s SAS connectivity
  • Accommodates 3.5-inch disk drives
  • S.M.A.R.T. support
  • Automatic bad-sector reassignment
  • Dedicated bandwidth to each connected drive

Support Drives

  • 2.5" SAS SSD - 200GB, 400GB or;800GB
  • 2.5" 10,000 RPM 6Gb/s SAS drives - 300GB, 600GB, 900GB or 1.2TB;
  • 3.5" 7,200 RPM 6Gb/s Nearline SAS drives - 1TB, 2TB, 3TB, 4TB or 6TB;
  • 3.5" 7,200 6Gb/s SATA drives - 1TB, 2TB, 3TB,;4TB or 5TB

** For the latest compatibility details, please contact our sales representatives

Maximum Number of Drives

  • Per system: 12
  • Via JBOD: 312

Corresponding Expansion Enclosure

Please refer to Related Information

Cache backup techniques

  • BBU + flash module (CacheSafe Technology)
  • Super capacitor + flash module

Form Factor

2U

RAID Functionality

  • Global, delicated or enclosure hot-spare
  • RAID levels supported : RAID 0, 1 (0+1), 3, 5, 6, 10, 30, 50, 60
  • Online expansion by:
    • Adding new drives
    • Copying and replacing drives with drives of larger capacity
  • RAID migration
  • Configurable stripe size and write policy per system
  • Intelligent drive handling
    • In degraded mode: skips irreparable blocks to continue rebuild
    • In normal operation: data-block verification and repair

Data Services

  • Thin provisioning
  • Automated;storage tiering*
  • Local replication **
    • Snapshot
    • Volume copy/ mirror
  • Remote replication*
    • Synchronous or asynchronous

* Optional
** Available with Standard license and optional Advanced license

Green Design

  • 80 PLUS-certified power supplies delivering more than 80% energy efficiency
  • Intelligent multi-level drive spin-down

Availability and Reliability

  • Redundant, hot-swappable hardware modules
  • CacheSafe technology
  • Multi-pathing support (EonPath)
  • Device mapper support

Notification

Various event notification methods including email, LAN broadcast, fax, SNMP traps, SMS, and Skype.;

Management

  • Java-based SANWatch management software
  • RS232 serial port for local access to firmware-embedded utility
  • Automated cache flush and caching mode operation per enclosure status
  • Telnet and SSH system monitoring via Ethernet
  • Platform-independent firmware management GUI
  • LCD keypad panel for monitoring and access to all configuration options
  • Module status LED indicators: component presence detection & thermal sensors via I2C bus

OS Support

  • Windows Server 2008, 2008 R2, 2012, 2012 R2;(including Hyper-V)
  • RedHat Enterprise Linux
  • SUSE Linux Enterprise
  • Sun Solaris
  • Mac OS X
  • VMware
  • Citrix
  • IBM AIX
  • HP-UX

** For the latest OS support details, please contact our sales representatives.

Service and Support

  • Standard service: 3-year limited harware/software warranty and 8x5 phone, web, and email support

  • Upgrade/Extension service*:
    Replacement part dispatch on the next business day (up to 5 years)

    • Advanced Service: 24x7 phone, web and email support + onsite diagnostics on the next business day

    • Premium Service: 24x7 phone, web and email support + onsite diagnostics in 4 hours

* Optional
** Service may vary by region

Power

  • Power supplies: Two 460W DC
  • AC voltage: 100VAC @ 8A to 240VAC @ 4A with PFC (auto-switching)
  • Frequency: 50-60 Hz

Environmental

  • Temperature:
    • Operating: 0 to 40°C without BBU or CBM / 0 to 35°C with BBU or CBM
    • Non-operating: -40 to 60°
  • Altitude: Sea level to 3660m (12,000ft) operating / sea level to 12,192m (40,000ft) non-operating
  • Relative humidity: 5 to 95% non-condensing, operating and non-operating

Dimensions

446mm (W) x 88mm (H) x 513mm (D)
**Without chassis ears / protrusions

Weight

13.60kg/ 29.98lbs;(without HDDs)

Package Dimensions

770mm (W) x 590mm (H) x 225mm (D)
