OR1000ERM1U
- Параметри: Енергоспестяващ 1U Rackmount UPS с AVR и LCD дисплей за монтаж в 19" шкаф, 1000VA/600W, 6x IEC C13, Runtime at 300W ( min ):14; размери 4,4 x 43,3 x 38,9 см; OR1000ERM1U
- Други: Simulated Sine Wave Output; USB Connection for PC/NAS; 4x 6V/7AH Battery; Green Power
- Гаранция: 24 m
- Наличност: ограничено количество
- Цена с включен ДДС: 811.20 BGN
Технически данни
| Part Number (P/N) | OR1000ERM1U | |
| Topology | Line-Interactive | |
| Capacity | VA | 1000VA |
| Watts | 600W | |
| Input | Nonimal Input Voltage | 230Vac |
| Voltage Range | 165-271Vac | |
| Frequency Range | 50/60Hz +/- 3% (Auto Sensing) | |
| Output | Transfer Time | Yes (Boost) |
| Voltage Range (Batt. Mode) | 230Vac +/- 10% | |
| Frequency Range | 50/60Hz +/- 1% | |
| Wave-Form | Simulated Sine Wave | |

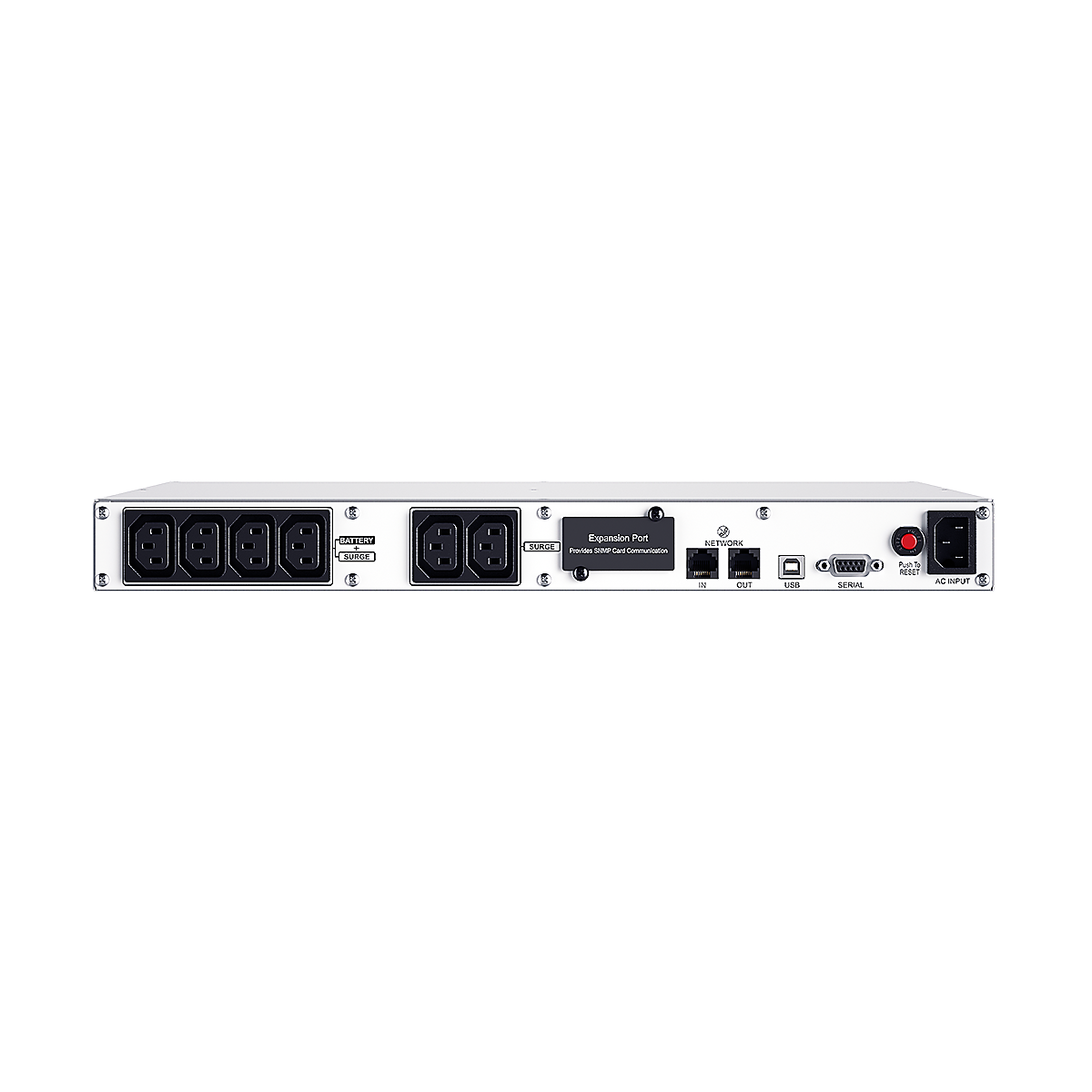

| Number / Type of Outlests | 6 | |
| Outlets (UPS+Surge) | IEC 320*4 | |
| Outlets (Surge Only) | IEC 320*2 | |
| Battery Type | User Replaceable Batteries | Yes |
| Batteries (Quantity) / Type | 6V / 7AH*4 | |
| Protection Info | Circuit Protection | On Utility: Circuit Breaker; On Battery: Internal Current Limiting |
| Data Line Surge | RJ11 / RJ45 (1/1) | |
| Management | Self-Test | Yes |
| DB9 PC-Connection Port | Yes (Dry Contact) | |
| USB PC-Connection Port | Yes | |
| Relay Port | Optional Relay (Using the RELAYIO500 card) | |
| SNMP/HTTP Network Card | Optional | |
| Monitoring Software | PowerPanel® Business Edition | |
| Extras | Energy Saving Technology | Yes |
| EPO (Emergency Power Off) | No | |
| Battery Expansion Capability | No | |

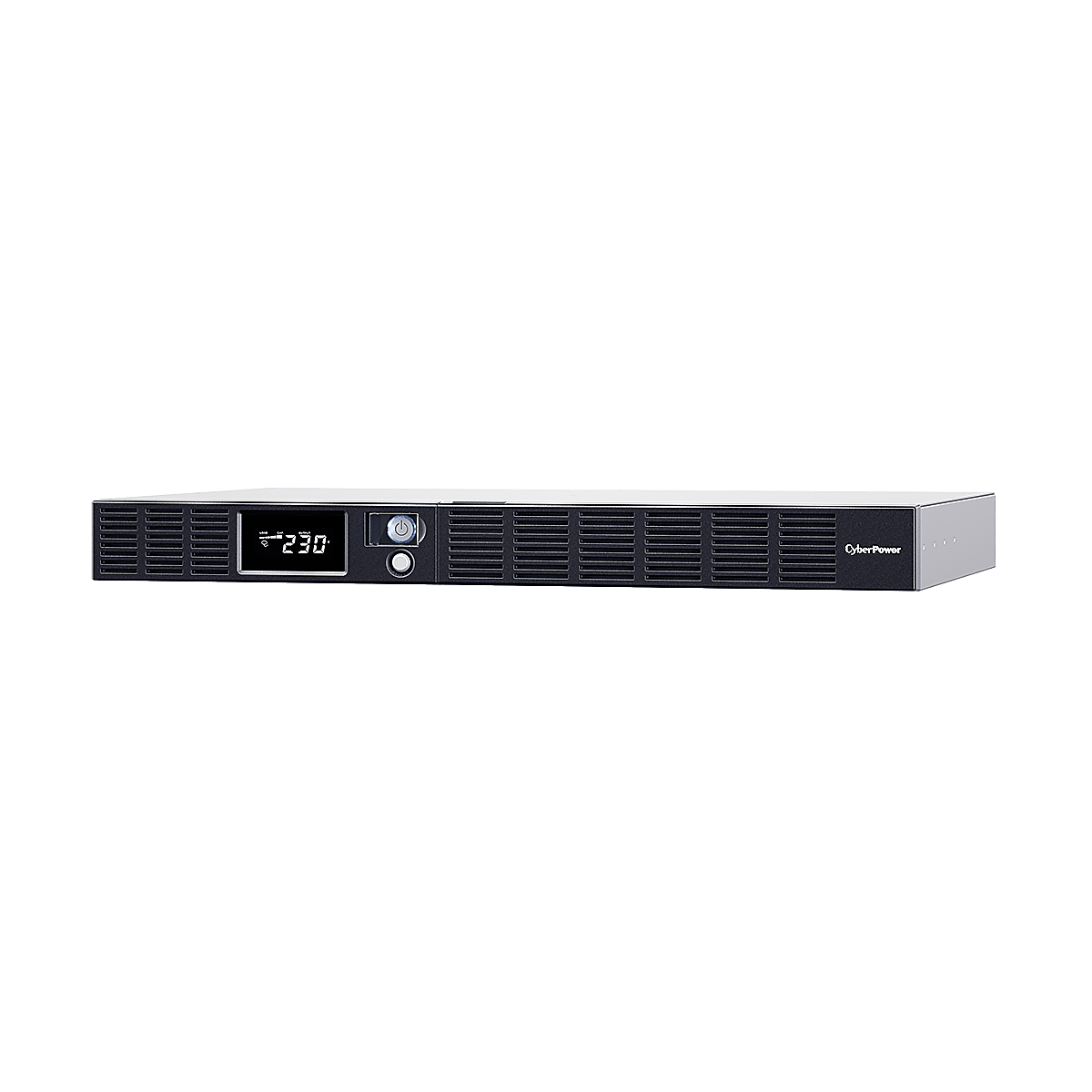

| Physical | LCD Info / Connectivity Ports | LCD Display: Input Voltage, Output Voltage, Runtime, % of Load, % of Battery Capacity, Sound enabled/disabled, Overload |
| Dimensions (H x W x D) (cm) | 4,4 x 43,3 x 38,9 | |
| Weight (kg) | 13,7 kg |
