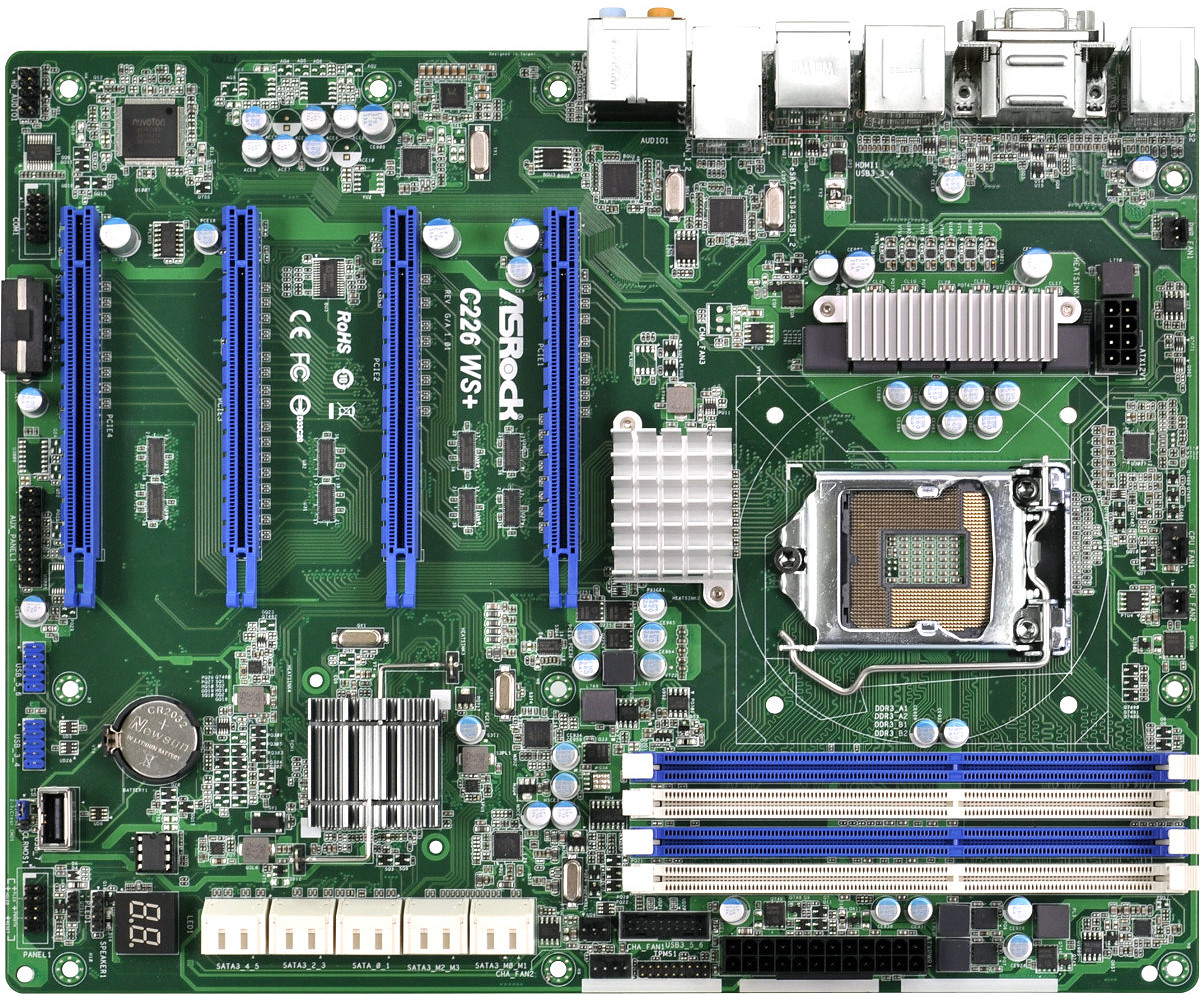

C226WS+

C226WS+ image click to zoom

  • ПараметриATX, C226 chipset, 1x soc.1150, DDR3-4 DIMMs, 10xSATA 6G, 2xGLAN, no IPMI, Audio
  • Други:  Supports New 4th and 4th Generation Intel XeonE3-1200 v3/ Core™ i7/i5/i3/Pentium/Celeron Processors (Socket 1150); 4-DIMM DDR3 1600/1333 ECC & UDIMM, max. 32GB; 4 x PCIe 3.0 x16; 6 x SATA3 by Intel C226 support RAID 0,1,5,10; 4 x SATA3 by Marvell 9172 sup
  • Гаранция36m
  • Наличностс поръчка
  • Цена с включен ДДС: 584.87 BGN

Технически данни

MB Physical Status Form Factor - ATX Dimensions - 12'' x 9.6'' (30.5 cm x 24.4 cm) Processor System CPU - Supports New 4th and 4th Generation Intel® XeonE3-1200 v3/ Core™ i7/i5/i3/Pentium/Celeron Processors (Socket 1150)
- Supports Hyper-Threading Technology
- Supports Intel® Turbo Boost 2.0 Technology Socket - Single socket H3 (LGA1150) Chipset - Intel® C226 System Memory Capacity - 4 x 240-pin DDR3 DIMM slots
- Support up to 32GB, un-buffered DIMM Type - Dual Channel DDR3 1600/1333 UDIMM and ECC UDIMM
- Supports DDR3 1600/1333 Voltage - 1.35V, 1.5V Expansion Slot PCIe 3.0 x 16 - 4 slot (PCIE1,PCIE3,PCIE5,PCIE7: x16/x0/x16/x0 or x8/x8/x8/x8 mode) Storage SATA Controller - Intel® C226 : 6 x SATA3 6.0 Gb/s Additional Storage Controller - 2 x Marvell SE9172 : 4 x SATA3 6.0 Gb/s (1 share with eSATA) Audio Audio Codec - ALC1150 Ethernet Interface - Gigabit LAN 10/100/1000 Mb/s LAN Controller - 2 x INTEL i210
- Supports Wake-On-LAN
- Supports Energy Efficient Ethernet 802.3az
- Supports Dual LAN with Teaming function

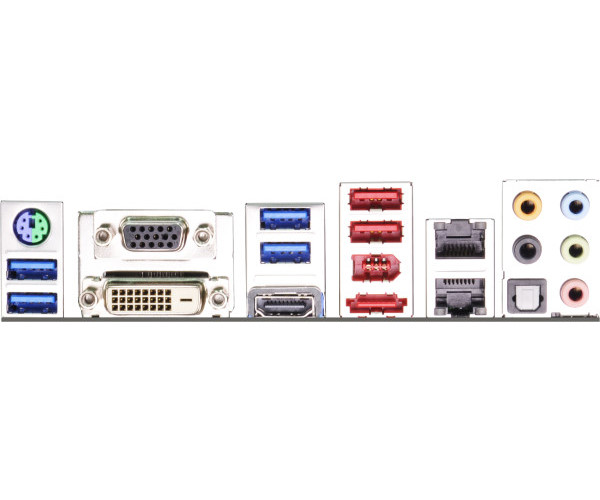

- Supports PXE Graphics Controller - Integrated. DirectX 11, Pixel Shader 5.0 Rear Panel I/O PS/2 KB/Mouse - 1 VGA Port - 1 x HDMI + 1 x DVI-D + 1 x D-Sub USB 2.0 Port - 2 USB 3.0 Port - 4 eSATA Port - 1 Lan Port - 2 x RJ45 Gigabit Ethernet LAN ports
- LAN Ports with LED (ACT/LINK LED and SPEED LED) Audio - 5 Jack: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone 1394 - 1 SPDIF - 1 Internal Connector COM Port Header - 1 (COM1) Power LED Header - 1 Auxiliary Panel Header - 1 (include chassis intrusion, front LAN LED) TPM Header - 1 Fan Header - 6 (2 x 4-pin, 4 x 3-pin) ATX Power - 1 (24-pin) + 1 (8-pin) USB 3.0 Header - 1 (each support 2 USB 3.0) USB 2.0 Header - 2 (each support 2 USB 2.0) Type A USB 2.0 Port - 1 HD Audio connector - 1 Speaker - 1 System BIOS BIOS Type - 64Mb AMI UEFI Legal BIOS with GUI support BIOS Features - Plug and Play (PnP)
- ACPI 1.1 Compliance Wake Up Events
- SMBIOS 2.3.1 Support
- DRAM Voltage Multi-adjustment
- CPU Core, IGPU, DRAM, 1.8V PLL, VTT, VCCSA Voltage Multi-adjustment Hardware Monitor Temperature - CPU Temperature Sensing
- System Temperature Sensing Fan - CPU/Rear/Front Fan Tachometer
- CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
- CPU/Rear/Front Fan Multi-Speed Control Voltage - Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore Support OS OS Microsoft Windows
- Microsoft Windows 8 / 8 64-bit / 7 / 7 64-bit
- Microsoft Windows 2012 R2 64-bit Feature Unique Features - ASRock Instant Flash Environment Temperature - Operation temperature: 10єC ~ 35єC / Non operation temperature: -40єC ~ 70єC
