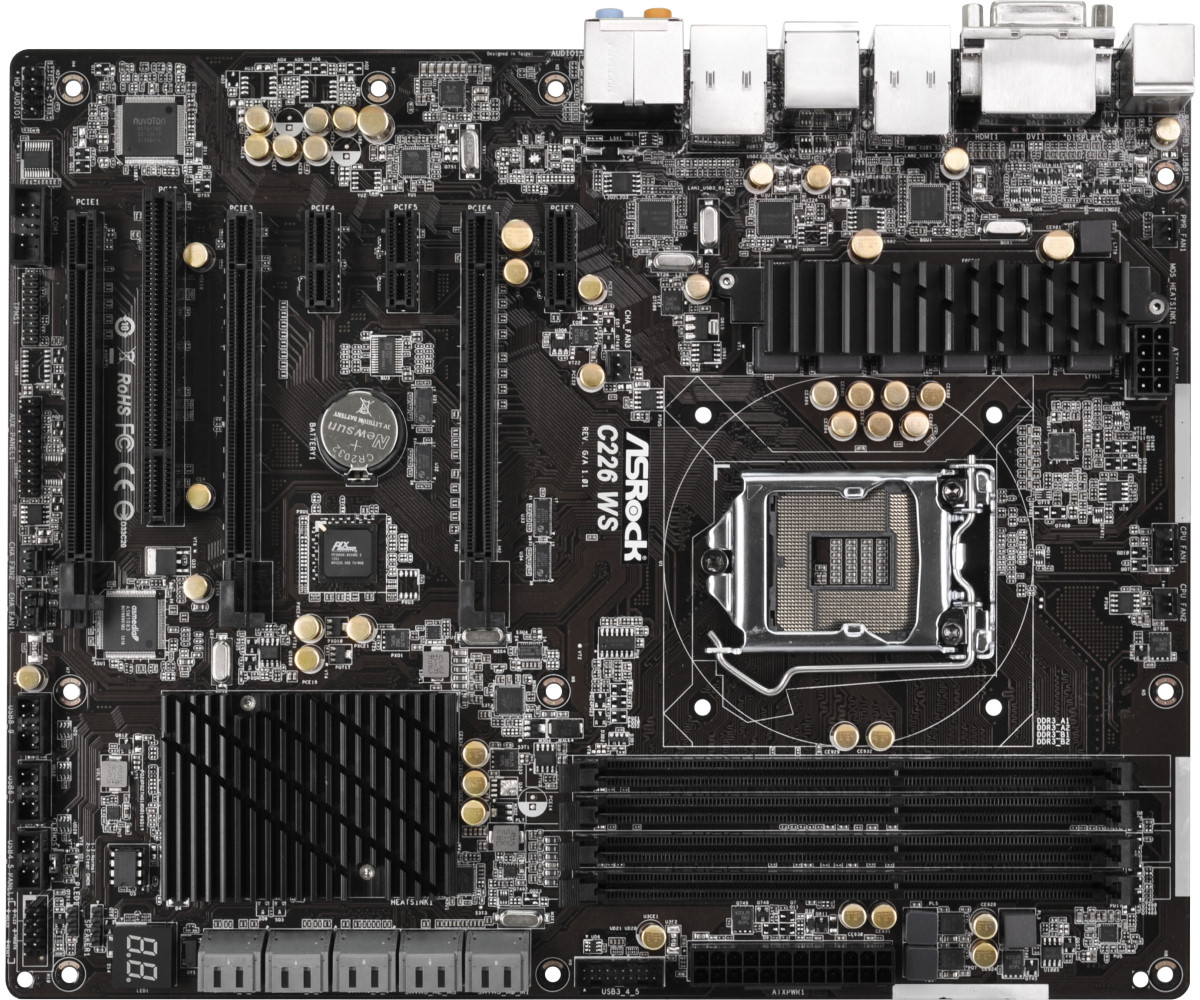

C226WS

C226WS image

  • ПараметриATX, C226 chipset, 1x soc.1150, DDR3-4 DIMMs, 10xSATA 6G, 2xGLAN, no IPMI, Audio
  • Други: Supports New 4th and 4th Generation Intel XeonE3-1200 v3/ Core™ i7/i5/i3/Pentium/Celeron Processors (Socket 1150); 4-DIMM DDR3 1600/1333 ECC & UDIMM, max. 32GB; 2 x PCIe 3.0 x16, 1 x PCIe 2.0 x4, 3 x PCIe 2.0 x1, 1 x PCI; 6 x SATA3 by Intel C226 support R
  • Гаранция36m
  • Наличностс поръчка
  • Цена с включен ДДС: 446.94 BGN

Технически данни

MB Physical Status Form Factor- ATX Dimensions- 12'' x 9.6'' (30.5 cm x 24.4 cm) Processor System CPU- Supports New 4th and 4th Generation Intel® XeonE3-1200 v3/ Core™ i7/i5/i3/Pentium/Celeron Processors (Socket 1150)
- Supports Intel® K-Series CPU
- Supports Hyper-Threading Technology
- Supports Intel® Turbo Boost 2.0 Technology Socket- Single socket H3 (LGA1150) Power Design- 6 Power Phase Design Chipset- Intel® C226 System Memory Capacity- 4 x 240-pin DDR3 DIMM slots
- Support up to 32GB, un-buffered DIMM Type- Dual Channel DDR3 1600/1333 UDIMM and ECC UDIMM
- Supports DDR3 1600/1333 Voltage- Supports 1.35V to 1.60V Expansion Slot PCIe 3.0 x 16- 2 slots ( PCIE6/PCIE3 : x16/x0 or x8/x8 mode) PCIe 2.0 x 16- 1 slot (PCIE1: x4 mode) PCIe 2.0 x 1- 3 slots (PCIE4/PCIE5/PCIE7) PCI- 1 slot (PCIE2) Storage SATA Controller- Intel® C226 : 6 x SATA3 6.0 Gb/s, support RAID 0, 1, 5, 10, Intel® Rapid Storage and Hot SWAP.
Additional Storage Controller- 2x Marvell SE9172 : 4 x SATA3 6.0 Gb/s, support RAID 0, 1, NCQ, AHCI and "Hot Plug". (1 share with eSATA) Audio Audio Codec- ALC1150 Ethernet Interface- Gigabit LAN 10/100/1000 Mb/s LAN Controller- 2 x INTEL i210
- Supports Wake-On-LAN
- Supports Energy Efficient Ethernet 802.3az
- Supports Dual LAN with Teaming function

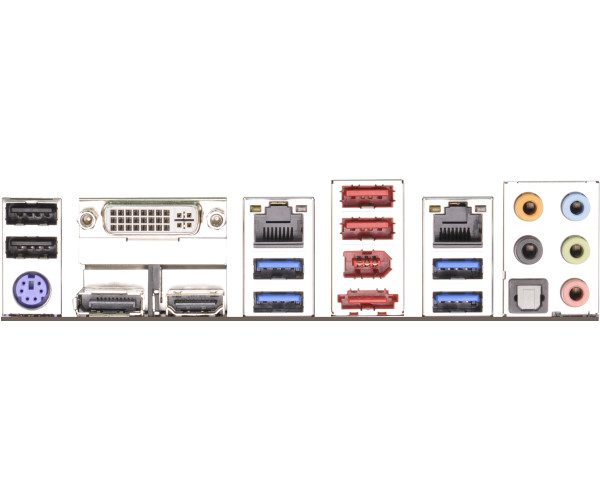

- Supports PXE Graphics Controller- Intel® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated VRAM- Max. shared memory 1760MB Output- Supports D-Sub with max. resolution up to 2048x1536 @ 75Hz Rear Panel I/O PS/2 KB/Mouse- 1 VGA Port- 1 x HDMI + 1 x DVI-I + 1 x Display port USB 2.0 Port- 4 USB 3.0 Port- 4 eSATA Port- 1 (eSATA3) Lan Port- 2 x RJ45 Gigabit Ethernet LAN ports
- LAN Ports with LED (ACT/LINK LED and SPEED LED) Audio- 5+1 Jack 1394- 1 SPDIF- 1 Internal Connector COM Port Header- 1 (COM1) Power LED Header- 1 Chassis Intrusion Header- 1 Auxiliary Panel Header- 1 (include chassis intrusion, front LAN LED) TPM Header- 1 Fan Header- 5 (2 x 4-pin, 3 x 3-pin) ATX Power- 1 (24-pin) + 1 (8-pin) USB 3.0 Header- 1 (each support 2 USB 3.0) USB 2.0 Header- 3 (each support 2 USB 2.0) System BIOS BIOS Type- 64Mb AMI UEFI Legal BIOS with GUI support BIOS Features- Plug and Play (PnP)
- ACPI 1.1 Compliance Wake Up Events
- SMBIOS 2.3.1 Support
- DRAM Voltage Multi-adjustment
- CPU Core, IGPU, DRAM, 1.8V PLL, VTT, VCCSA Voltage Multi-adjustment Hardware Monitor Temperature- CPU Temperature Sensing
- System Temperature Sensing Fan- CPU/Rear/Front Fan Tachometer
- CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
- CPU/Rear/Front Fan Multi-Speed Control Voltage- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore Support OS OSMicrosoft Windows
- Microsoft Windows 8 / 8 64-bit / 7 / 7 64-bit
- Microsoft Windows 2012 R2 64-bit Feature Unique Features- ASRock Instant Flash Environment Temperature- Operation temperature: 10єC ~ 35єC / Non operation temperature: -40єC ~ 70єC
