C226M WS

C226M WS image click to zoom

  • Параметриmicro-ATX, C226 chipset, 1x soc.1150, DDR3-4 DIMMs, 6xSATA 6G, 2xGLAN, no IPMI, Audio
  • Други:  Supports New 4th and 4th Generation Intel XeonE3-1200 v3/Core™ i7/i5/i3/Pentium/Celeron Processors (Socket 1150); 4 x DIMM DDR3 1600/1333 ECC & UDIMM, max. 32GB; 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x8, 1 x PCIe 2.0 x4, 1 x M.2 slot; 6 x SATA3 by Intel C226, su
  • Гаранция36m
  • Наличностс поръчка
  • Цена с включен ДДС: 384.78 BGN

Технически данни

MB Physical Status Form Factor - Micro ATX Dimensions - 9.6'' x 9.6'' (24.4 cm x 24.4 cm) Processor System CPU - Supports New 4th and 4th Generation Intel® XeonE3-1200 v3/Core™ i7/i5/i3/Pentium/Celeron Processors (Socket 1150)
- Supports Hyper-Threading Technology
- Supports Intel® Turbo Boost 2.0 Technology

** HDMI only works with certain Intel® E3 v3 CPUs(E3-1276 v3 /E3-1246 v3 /E3-1226v3 /E3-1275L v3 /E3-1286 v3/E3-1286L v3)

**Haswell i5/i7 processor support is an extended advantage provided by ASRock Rack. It is out of warranty; user's discretion is required.
Socket - Single socket H3 (LGA1150) Chipset - Intel® C226 System Memory Capacity - 4 x 240-pin DDR3 DIMM slots
- Support up to 32GB, un-buffered DIMM Type - Dual Channel DDR3 1600/1333 UDIMM & ECC UDIMM
- Supports DDR3 1600/1333 Voltage - 1.5V, 1.35V Expansion Slot PCIe 3.0 x 16 - 1 slot (x16 or x8, switch with x8 slot) PCIe 3.0 x 8 - 1 slot (x0 or x8, switch with x16 slot) PCIe 2.0 x 4 - 1 slot M.2 - 1 slot (share with SATA Port4 & Port5) Storage SATA Controller - Intel® C226: 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 13 and Intel® Smart Response Technology), NCQ, AHCI and Hot Plug
- Support SATA Express (SATA Port5 & Port4, share with M.2 slot) Audio Audio Codec - Realtek ALC892 Ethernet Interface - Gigabit LAN 10/100/1000 Mb/s LAN Controller Intel® i210 + Intel® i217LM (with Intel® vPro support)
- Supports Wake-On-LAN
- Supports Energy Efficient Ethernet 802.3az
- Supports Dual LAN with Teaming function

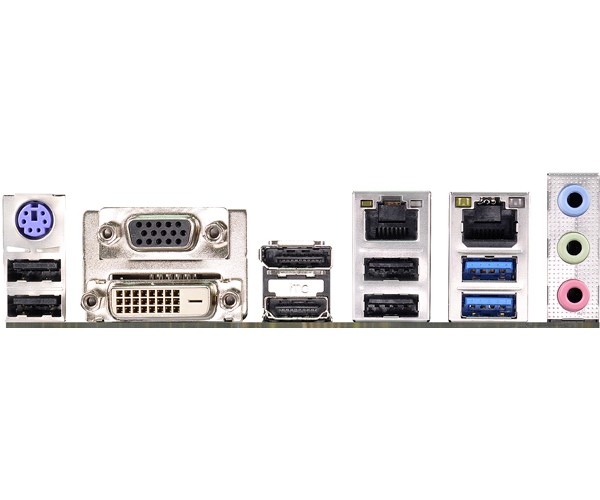

- Supports PXE Graphics Controller - Intel® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated VRAM - Max. shared memory 1792MB Output - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz Rear Panel I/O PS/2 KB/Mouse - 1 VGA Port - D-sub x 1, DVI x 1, HDMI x 1, Display port x1 USB 2.0 Port - 4 USB 3.0 Port - 2 Lan Port - 2 x RJ45 Gigabit Ethernet LAN ports
- LAN Ports with LED (ACT/LINK LED and SPEED LED) Audio - 3 Jack Internal Connector COM Port Header - 1 (COM1) Power LED Header - 1 Auxiliary Panel Header - 1 (include chassis intrusion, front LAN LED) TPM Header - 1 Fan Header - 5 x 4pin ATX Power - 1 (24-pin) + 1 (8-pin) USB 3.0 Header - 1 (each supports 2 USB 3.0) USB 2.0 Header - 1 (each supports 2 USB 2.0) System BIOS BIOS Type - 128Mb AMI UEFI Legal BIOS BIOS Features - Plug and Play (PnP)
- ACPI 1.1 Compliance Wake Up Events
- SMBIOS 2.3.1 Support
- DRAM Voltage Multi-adjustment
- CPU Core, IGPU, DRAM, 1.8V PLL, VTT, VCCSA Voltage Multi-adjustment Hardware Monitor Temperature - CPU Temperature Sensing
- System Temperature Sensing Fan - CPU/Rear/Front Fan Tachometer
- CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
- CPU/Rear/Front Fan Multi-Speed Control Voltage - Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore Support OS OS Microsoft Windows
- Windows 7 ( 32 / 64 bit)
- Windows 8 ( 32 / 64 bit)
- Windows 8.1 ( 32 / 64 bit)
- Server 2012 R2 (64 bit) Feature Unique Features - ASRock Instant Flash Environment Temperature - Operation temperature: 10єC ~ 35єC / Non operation temperature: -40єC ~ 70єC
