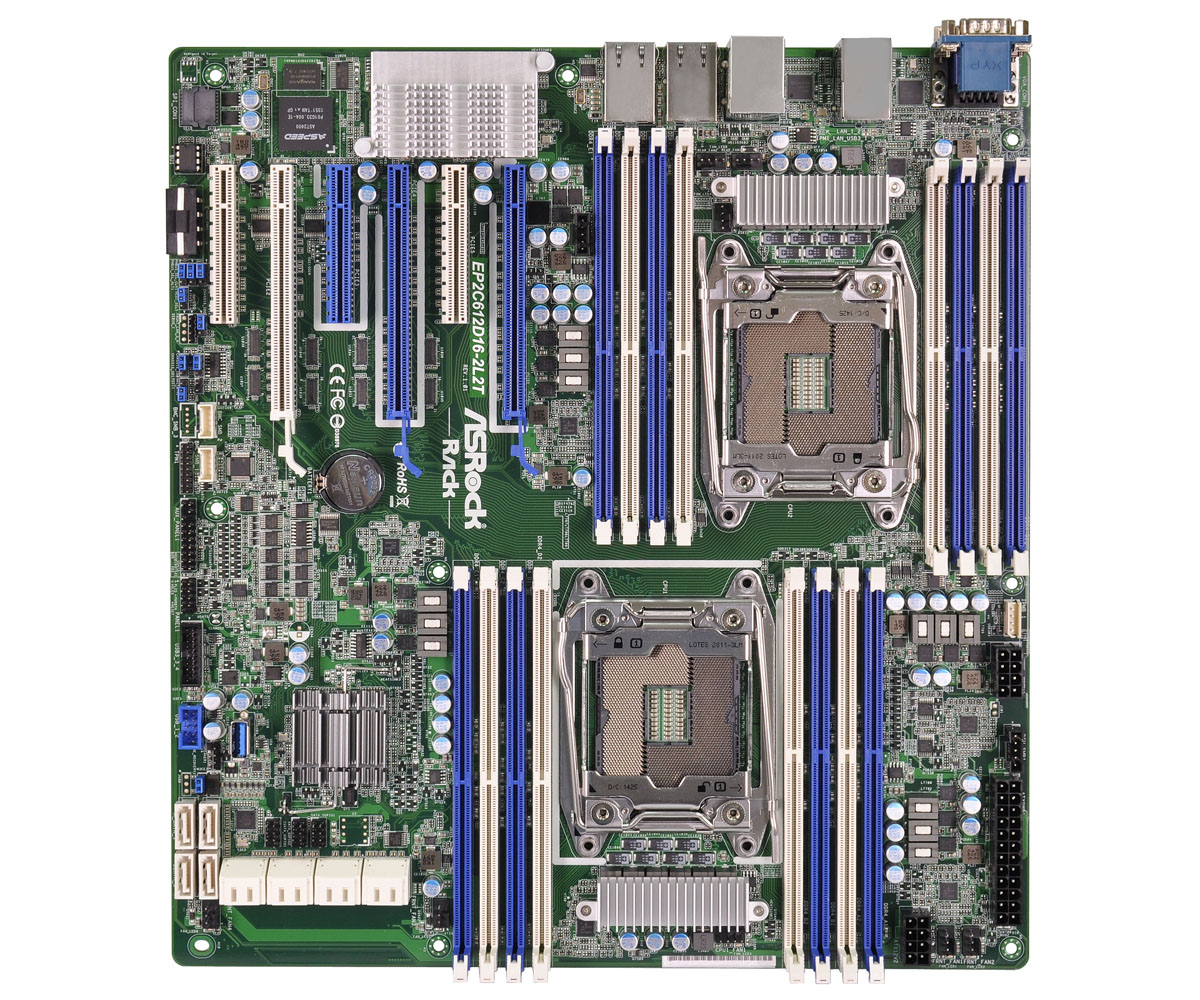

EP2C612D16-2L2T

EP2C612D16-2L2T image

  • ПараметриE-ATX, C612 chipset, 2x soc.2011 R3, DDR4-16 DIMMs, N/AxSATA 3G, 12xSATA 6G, N/A SAS, 2 (i210)xGLAN, 2*10G base-T 10GLAN optional, AST2400 IPMI
  • Други: support Intel Xeon processor E5-2600/4600 & v3 series; Supports DDR4 2133/1866/1600 LR DIMM, Rigistered, ECC DIMM and NVDIMM, total 16 x DIMM slot; Supports 10 x SATA3 6.0 Gb/s by INTEL C612, 2 x SATA3 by Marvell 9172; Supports 3 PCIe3.0x 16, 3 PCIE 3.0 x
  • Гаранция36m
  • Наличностограничено количество
  • Цена с включен ДДС: 1153.59 BGN

Технически данни

MB Physical Status Form Factor- SSI EEB Dimensions- 12'' x 13'' (30.5 cm x 33 cm) Processor System CPU- Intel® Xeon processor E5-2600/4600 & v3 series Socket- Dual Socket LGA 2011 R3*
*Please use narrow type CPU Cooler Chipset- Intel® C612 System Memory Capacity- 16 DIMM slots (support NVDIMM) Type- Quad Channel memory technology
- Supports 2133/1866/1600 LR/R/ECC DIMM and NVDIMM Voltage- 1.2V Expansion Slot PCIe 3.0 x 16- 3 slots PCIe 3.0 x 8- 3 slots Storage SATA Controller- Intel® C612 : 10 x SATA3 6 Gb/s Additional Storage Controller- Marvell 9172: 2 x SATA3 6Gb/s Ethernet Interface- 10G by Intel® X540 ; 1000 /100 /10 Mbps by Intel® i210 LAN Controller- 2 x RJ45 10G base-T by Intel® X540
- 2 x RJ45 GLAN by Intel® i210
- 1 x RJ45 Dedicated IPMI LAN port
- Supports Wake-On-LAN
- Supports Energy Efficient Ethernet 802.3az
- Supports Dual LAN with Teaming function
- Supports PXE
- LAN1 Supports NCSI Management BMC Controller- ASPEED AST2400 IPMI Dedicated LAN- 1 x Realtek RTL8211E for dedicated management GLAN Features- Watch Dog

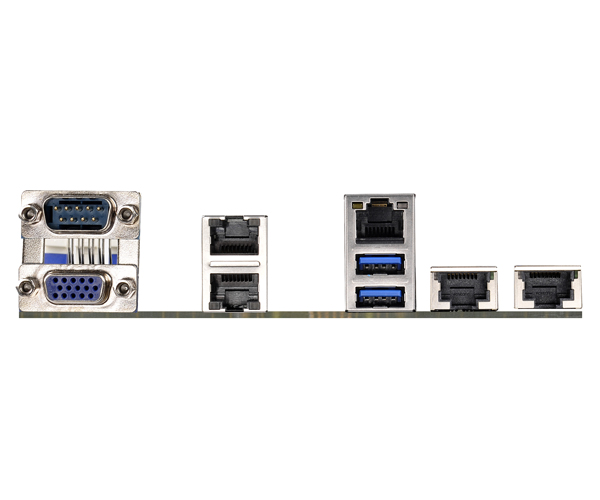

- NMI Graphics Controller- ASPEED AST2400 VRAM- DDR3 16MB Rear Panel I/O VGA Port- 1 x D-Sub USB 3.0 Port- 2 Lan Port- 4 + 1 (IPMI) Lan port (RJ45)
- LAN Ports with LED (ACT/LINK LED and SPEED LED) Serial Port- 1 (COM1) Internal Connector Auxiliary Panel Header- 1 (includes chassis intrusion, location button & LED, front LAN LED) TPM Header- 1 IPMB Header- 1 Fan Header- 2x CPU Fan, 6x system Fan (4-pin) ATX Power- 1 (24-pin) + 2 (8-pin) USB 3.0 Header- 1 ( support 2 USB 3.0) USB 2.0 Header- 1 ( support 2 USB 2.0) Type A USB 3.0 Port- 1 Thunderbolt AIC Connector- 1 System BIOS BIOS Type- 128Mb AMI UEFI Legal BIOS BIOS Features- Plug and Play (PnP)
- ACPI 2.0 Compliance Wake Up Events
- SMBIOS 2.8 Support
- ASRock Rack Instant Flash Hardware Monitor Temperature- CPU Temperature Sensing
- System Temperature Sensing
- Card Side Temperature Sensing Fan- CPU/Rear/Front Fan Tachometer
- CPU Quiet Fan (Allow CPU Fan Speed Auto-Adjust by CPU Temperature)
- CPU/Rear/Front Fan Multi-Speed Control VoltageVoltage Monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, 1.05V_PCH, +BAT, 3VSB, 5VSB Support OS OSMicrosot Windows
- Server 2008 R2 SP1 (64 bit)
- Server 2012 (64 bit)
- Server 2012 R2 (64 bit)
Linux
- RedHat Enterprise Linux Server 5.10/6.5 (32 / 64 bit)
- CentOS 5.10 / 6.5 (32 / 64 bit)
- SUSE Enterprise Linux Server 11 SP3 (32 / 64 bit)
- FreeBSD 9.1 (32 / 64 bit)
- Fedora core 19 (64 bit)
- Ubuntu 12.04.2 (64 bit) / 12.10 (64 bit)
Virtual
- VMWare ESXi 5.5 (not supported for Marvell 9172) Environment TemperatureOperation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
