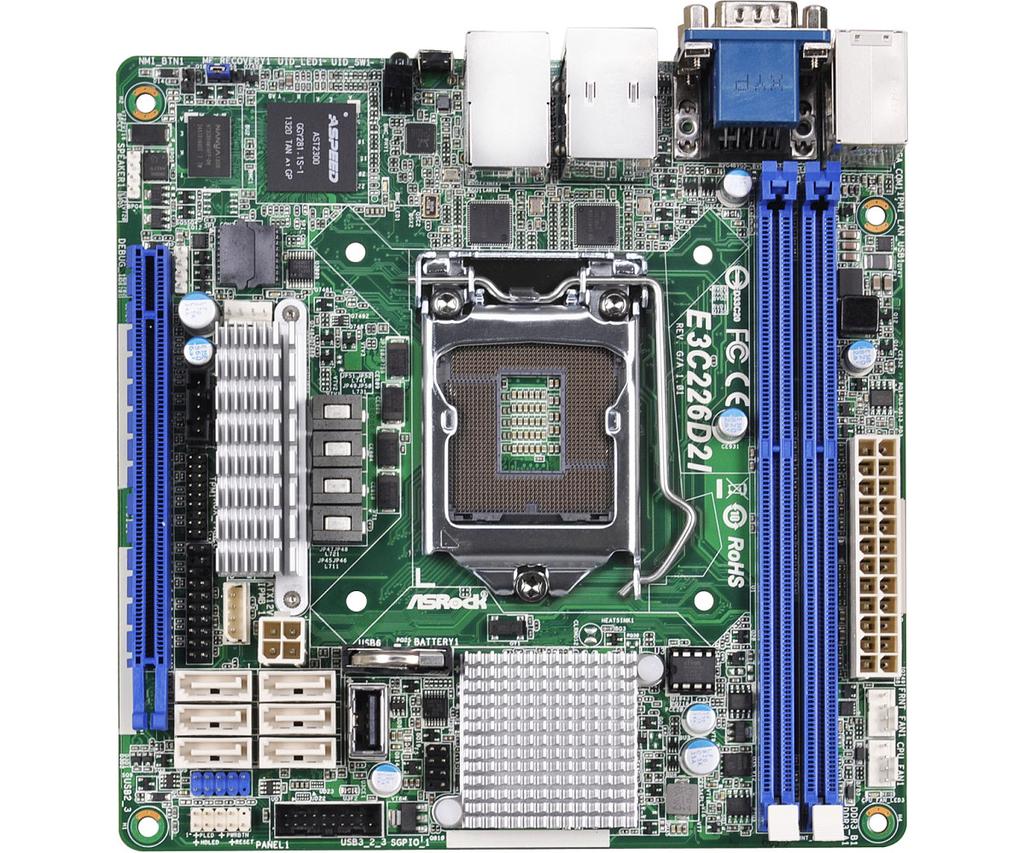

E3C226D2I

E3C226D2I image

  • ПараметриMini-ITX, C226 chipset, 1x soc.1150, DDR3-2 DIMMs, N/AxSATA 3G, 6xSATA 6G, 2xGLAN, IPMI
  • Други: Supports New 4th and 4th Generation Intel XeonE3-1200 v3/ Core™ i7/i5/i3/Pentium/Celeron Processors (Socket 1150); 2x DIMM DDR3 1600/1333, Max. 16GB; 1 x PCIe 3.0 x16; 6 x SATA3 by Intel C226 support RAID 0,1,5,10; 2 x Intel i210, support Dual GLAN with t
  • Гаранция36m
  • Наличностограничено количество
  • Цена с включен ДДС: 450.51 BGN

Технически данни

MB Physical Status
Form Factor- Mini ITX
Dimensions- 6.7'' x 6.7'' (17.02 cm x17.02 cm)
Processor System
CPU- Supports New 4th and 4th Generation Intel® Xeon E3-1200 v3/ Core™ i7/i5/i3/Pentium/Celeron Processors (Socket 1150)
- Supports Hyper-Threading Technology

* Due to Graphics control by AST2300, E3-1200 series integrated graphics can’t be used.
Socket- Single Socket H3 (LGA1150)
Power Design- 6 Power Phase Design
Chipset- Intel® C226
System Memory
Capacity- 2 x 240-pin DDR3 DIMM slots
- Support up to 16GB DDR3 ECC DIMM
Type- Dual Channel DDR3 memory technology
- Supports DDR3 1600/1333 ECC DIMM
Voltage- 1.5V, 1.35V
Expansion Slot
PCIe 3.0 x 16- 1 slot (x16 mode)
Storage
SATA Controller- Intel® C226 : 6 x SATA3 6.0 Gb/s, Support RAID 0, 1, 5, 10 and Intel® Rapid Storage
Ethernet
Interface- Gigabit LAN 10/100/1000 Mb/s
LAN Controller- 2 x Intel® i210
- Supports Wake-On-LAN
- Supports Energy Efficient Ethernet 802.3az
- Supports Dual LAN with Teaming function
- Supports PXE
Management
BMC Controller- ASPEED AST2300 : IPMI (Intelligent Platform Management Interface) 2.0 with iKVM support
IPMI Dedicated LAN- 1 x Realtek RTL8211E for dedicated management LAN
Features- Watch Dog
- NMI
Graphics
Controller- ASPEED AST2300
VRAM- DDR3 16MB
Output- Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz

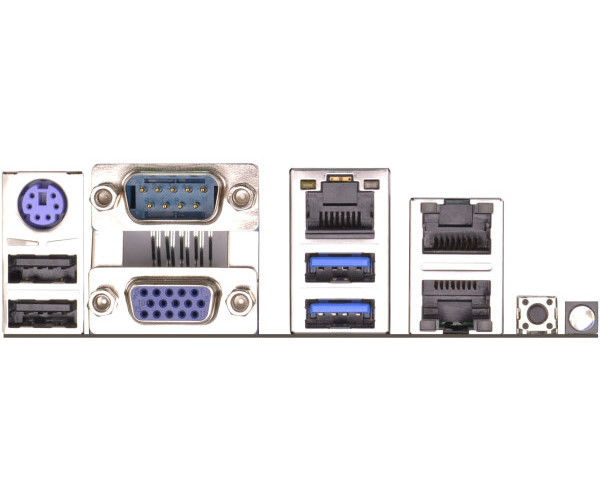

Rear Panel I/O
PS/2 KB/Mouse- 1
VGA Port- D-sub x 1
USB 2.0 Port- 2
USB 3.0 Port- 2
Lan Port- 2 x RJ45 Gigabit Ethernet LAN ports
- 1 x RJ45 Dedicated IPMI LAN port
- LAN Ports with LED (ACT/LINK LED and SPEED LED)
Serial Port- 1 (COM1)
UID Button/UID LED- 1
Internal Connector
COM Port Header- 1 (COM2)
Auxiliary Panel Header- 1 (include chassis intrusion, location button & LED, front LAN LED)
IPMB Header- 1
Fan Header- 3 x 4-pin
ATX Power- 1 (24-pin) + 1 (4-pin)
USB 2.0 Header- 1 (each support 2 USB 2.0)
Type A USB 2.0 Port- 1
USB 3.0 Header- 1 (each support 2 USB 3.0)
System BIOS
BIOS Type- 64Mb AMI UEFI Legal BIOS
BIOS Features- Plug and Play (PnP)
- ACPI 1.1 Compliance Wake Up Events
- SMBIOS 2.3.1 Support
- DRAM Voltage Multi-adjustment
- ASRock Instant Flash
Hardware Monitor
Temperature- CPU Temperature Sensing
- System Temperature Sensing
Fan- CPU/Rear/Front Fan Tachometer
- CPU Quiet Fan (Allow CPU Fan Speed Auto-Adjust by CPU Temperature)
- CPU/Rear/Front Fan Multi-Speed Control
Voltage- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, 1.05V_PCH, +BAT, 3VSB, 5VSB
Support OS
OSMicrosoft Windows
- Server 2008 R2 (x64)
- Server 2012 (x64)
Linux
- RedHat Enterprise Linux Server 5.5/6.4 (x32 and x64)
- CentOS 5.5 / 6.4 (x32 and x64)
- SUSE Enterprise Linux Server 11 SP1 (x32 and x64)
- FreeBSD 9.1 (x32/x64)
- Fedora core 18 (x64)
- UBuntu 12.04/12.10 (x64)
Virtual
- VMWare ESXi 5.1
Environment
Temperature- Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
