E3C224D4I-14S

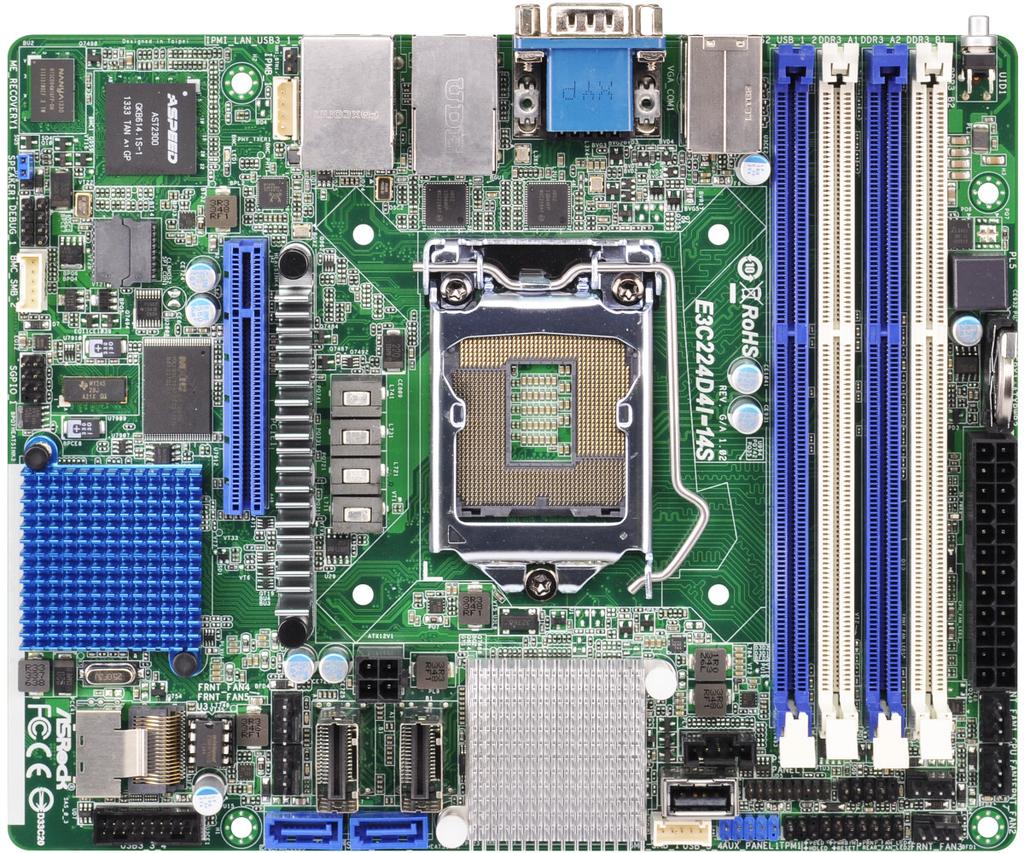

E3C224D4I-14S image

  • ПараметриMini-ITX (Extended), C224 chipset, 1x soc.1150, DDR3-4 DIMMs, 2xSATA 3G, 4xSATA 6G, 8*6G SAS, 2xGLAN, IPMI
  • Други: supports Intel Xeon processor E3-1200 v3 series & Haswell i3, Pentium and Celeron processors; 4 x DIMM DDR3 1600/1333 ECC, max. 32GB; 1 x PCIe 3.0 x8; 4 x SATA3 by Intel C224 support RAID 0,1,5,10; 8 x SAS2 from 2 x mini SAS 8087 connector by LSI 2308; 2
  • Гаранция36m
  • Наличностограничено количество
  • Цена с включен ДДС: 644.24 BGN

Технически данни

MB Physical Status
Form Factor- Extended mini ITX
Dimensions- 8.4" x 6.7'' (21.3 cm x 17 cm)
Processor System
CPU- Single socket H3 (LGA 1150) supports Intel® Xeon processor E3-1200 v3 series & Haswell i3 processors
- Supports Hyper-Threading Technology
Socket- Single Socket H3 (LGA1150)
Chipset- Intel® C224
System Memory
Capacity- 4 x 240-pin DDR3 DIMM slots
- Support up to 32GB DDR3 ECC UDIMM
Type- Dual Channel DDR3 memory technology
- Supports DDR3 1600/1333 ECC UDIMM
Voltage- 1.5V, 1.35V
Expansion Slot
PCIe 3.0 x 16- 1 slot (x8)
Storage
SATA Controller- Intel® C224 : 4 x SATA3 6.0 Gb/s (from mini SAS connector), 2 x SATA2 3.0 Gb/s, Support RAID 0, 1, 5, 10 and Intel® Rapid Storage
SAS Controller- LSI 2308: 8 x SAS2 6Gbps ( from 2x mini SAS 8087 connector)
Ethernet
Interface- Gigabit LAN 10/100/1000 Mb/s
LAN Controller- 2 x Intel® i210
- Supports Wake-On-LAN
- Supports Energy Efficient Ethernet 802.3az
- Supports Dual LAN with Teaming function
- Supports PXE
Management
BMC Controller- ASPEED AST2300 : IPMI (Intelligent Platform Management Interface) 2.0 with iKVM support
IPMI Dedicated LAN- 1 x Realtek RTL8211E for dedicated management LAN
Features- Watch Dog
- NMI
Graphics
Controller- ASPEED AST2300
VRAM- DDR3 16MB
Output- Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz

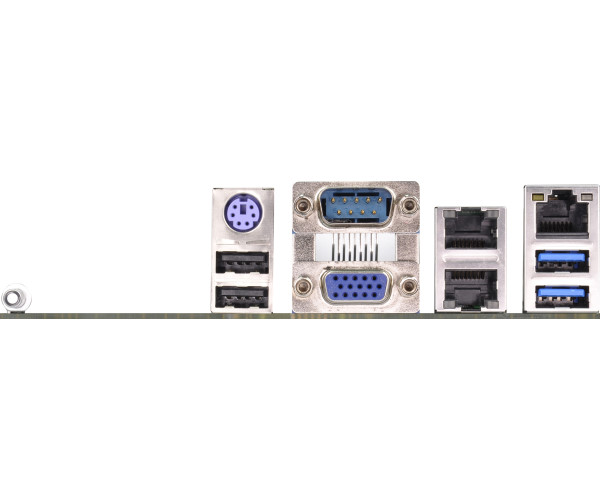

Rear Panel I/O
PS/2 KB/Mouse- 1
VGA Port- D-sub x 1
USB 2.0 Port- 2
USB 3.0 Port- 2
Lan Port- 2 x RJ45 Gigabit Ethernet LAN ports
- 1 x RJ45 Dedicated IPMI LAN port
- LAN Ports with LED (ACT/LINK LED and SPEED LED)
Serial Port- 1 (COM1)
UID Button/UID LED- 1
Internal Connector
Auxiliary Panel Header- 1 (includes chassis intrusion, location button & LED, and front LAN LED)
IPMB Header- 1
Fan Header- 6 x 4-pin
ATX Power- 1 (24-pin) + 1 (4-pin)
USB 2.0 Header- 1 (each support 2 USB 2.0)
Type A USB 2.0 Port- 1
USB 3.0 Header- 1 (each support 2 USB 3.0)
System BIOS
BIOS Type- 64Mb AMI UEFI Legal BIOS
BIOS Features- Plug and Play (PnP)
- ACPI 1.1 Compliance Wake Up Events
- SMBIOS 2.3.1 Support
- DRAM Voltage Multi-adjustment
- ASRock Instant Flash
Hardware Monitor
Temperature- CPU Temperature Sensing
- System Temperature Sensing
Fan- CPU/Rear/Front Fan Tachometer
- CPU Quiet Fan (Allow CPU Fan Speed Auto-Adjust by CPU Temperature)
- CPU/Rear/Front Fan Multi-Speed Control
Voltage- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, 1.05V_PCH, +BAT, 3VSB, 5VSB
Support OS
OSMicrosoft Windows
- Server 2008 R2 (64 bit)
- Server 2012 (64 bit)
- Server 2012 R2 (64 bit)
Linux
- RedHat Enterprise Linux Server 5.9/6.4 (32 / 64 bit)
- CentOS 5.9 / 6.4 (32 / 64 bit)
- SUSE Enterprise Linux Server 11 SP3 (32 / 64 bit)
- FreeBSD 9.1 (32 / 64 bit)
- Fedora core 19 (64 bit)
- UBuntu 12.04.2 (64 bit) / 12.10 (64 bit)
Virtual
- VMWare ESXi 5.5
Environment
Temperature- Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
