E3C224-V4L

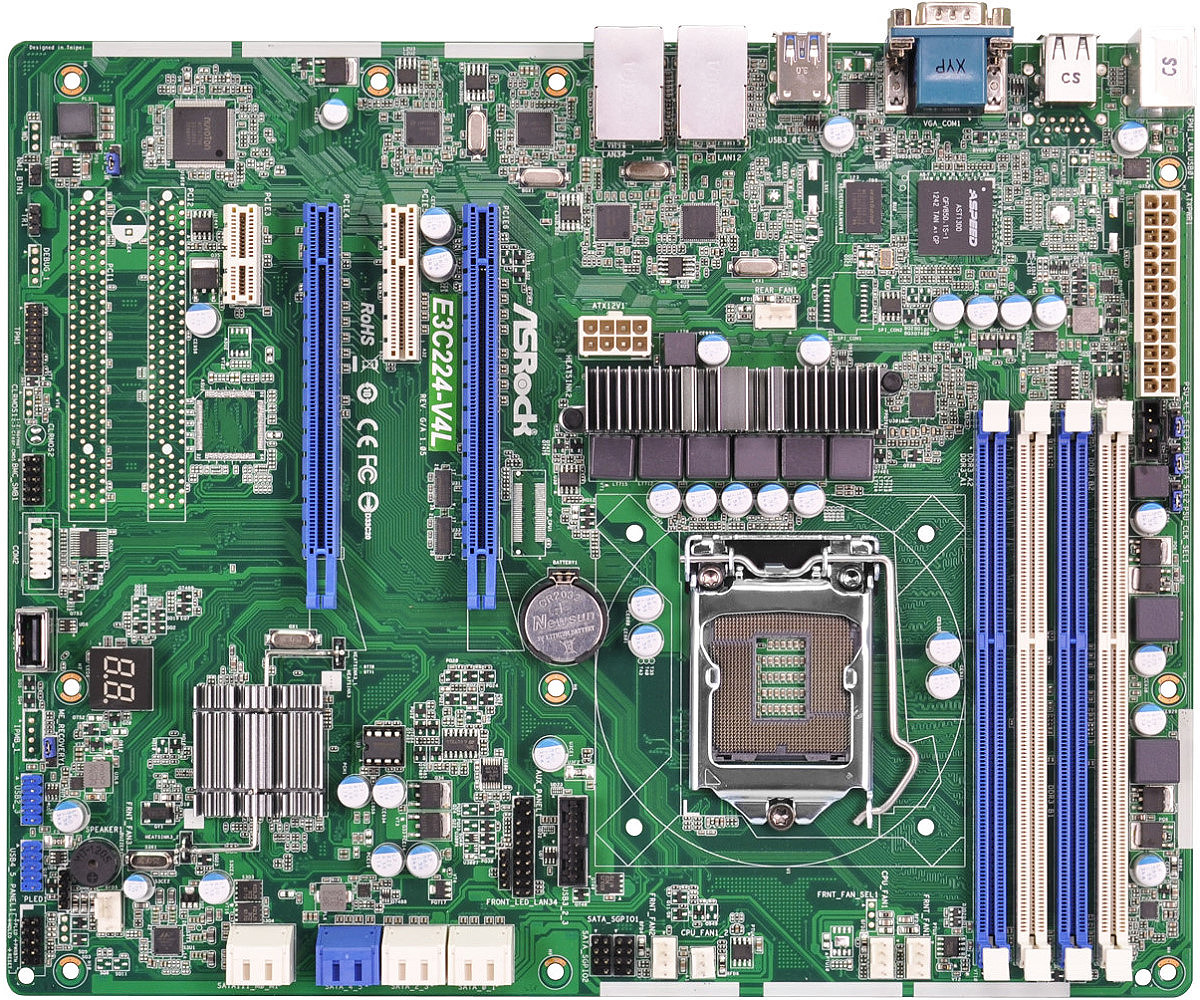

E3C224-V4L image

  • ПараметриATX, C224 chipset, 1x soc.1150, DDR3-4 DIMMs, 2xSATA 3G, 6xSATA 6G, 4xGLAN, no IPMI
  • Други: Supports New 4th and 4th Generation Intel XeonE3-1200 v3/ Core™ i3/Pentium/Celeron Processors (Socket 1150); 4 x DIMM DDR3 1600/1333 ECC, max. 32GB; 2 x PCIe 3.0 x16, 1 x PCIe 3.0 x4, 1 x PCIe 2.0 x1; 4 x SATA3, 2 SATA2 by Intel C224 support RAID 0,1,5,10
  • Гаранция36m
  • Наличностс поръчка
  • Цена с включен ДДС: 371.21 BGN

Технически данни

MB Physical Status Form Factor- ATX Dimensions- 12'' x 9.6'' (30.5 cm x 24.4 cm) Processor System CPU- Supports New 4th and 4th Generation Intel® XeonE3-1200 v3/ Core™ i3/Pentium/Celeron Processors (Socket 1150)
- Supports Hyper-Threading Technology Socket- Single Socket H3 (LGA1150) Power Design- 6 Power Phase Design Chipset- Intel® C224 System Memory Capacity- 4 x 240-pin DDR3 DIMM slots
- Support up to 32GB DDR3 ECC UDIMM Type- Dual Channel DDR3 memory technology
- Supports DDR3 1600/1333 ECC DIMM Voltage- 1.5V, 1.35V Expansion Slot PCIe 3.0 x 16- 2 slots (PCIE6 : x8 / PCIE4 : x8/x4, switch with PCIE5) PCIe 3.0 x 4- 1 slot (PCIE5: x0/x4 mode, switch with PCIE4) PCIe 2.0 x 1- 1 slot Storage SATA Controller- Intel® C224 : 4 x SATA3 6.0 Gb/s, 2 x SATA2 3.0 Gb/s, Support RAID 0, 1, 5, 10 and Intel® Rapid Storage Additional Storage Controller- Marvell SE9172: 2 x SATA3 6.0 Gb/s, support RAID 0, 1, NCQ, AHCI and "Hot Plug"

*Marvell SE9172 RAID is supported with Windows OS only.
Ethernet Interface- Gigabit LAN 10/100/1000 Mb/s LAN Controller- 4 x Intel® i210
- Supports Wake-On-LAN
- Supports Energy Efficient Ethernet 802.3az
- Supports Dual LAN with Teaming function

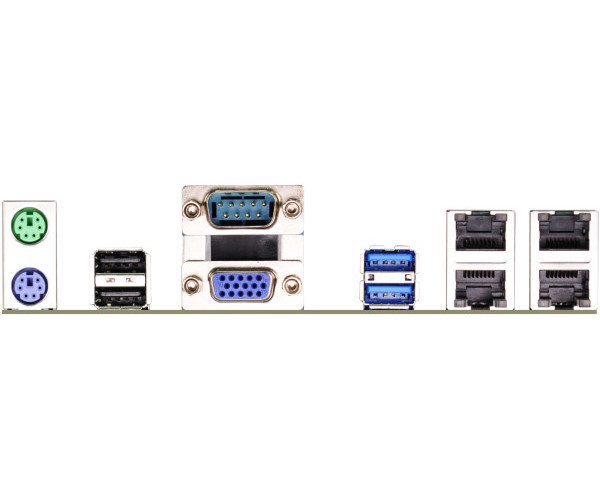

- Supports PXE Graphics Controller- ASPEED AST1300 VRAM- DDR3 16MB Output- Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz Rear Panel I/O PS/2 KB/Mouse- 2 VGA Port- D-sub x 1 USB 2.0 Port- 2 USB 3.0 Port- 2 Lan Port- 4 x RJ45 Gigabit Ethernet LAN ports
- LAN Ports with LED (ACT/LINK LED and SPEED LED) Serial Port- 1 (COM1) Internal Connector COM Port Header- 1 (COM2) Front Lan LED Connector - 1 Auxiliary Panel Header- 1 (include chassis intrusion, location button & LED, front LAN LED) TPM Header- 1 Thermal Sensor Header- 1 IPMB Header- 1 Buzzer- 1 Fan Header- 6 (5 x 4-pin, 1 x 3-pin) ATX Power- 1 (24-pin)+1 (8-pin) USB 3.0 Header- 1 (each support 2 USB 3.0) USB 2.0 Header- 2 (each support 2 USB 2.0) Type A USB 2.0 Port- 1 System BIOS BIOS Type- 64Mb AMI UEFI Legal BIOS BIOS Features- Plug and Play (PnP)
- ACPI 2.0 Compliance Wake Up Events
- SMBIOS 2.3.1 Support
- DRAM Voltage Multi-adjustment
- ASRock Instant Flash Hardware Monitor Temperature- CPU Temperature Sensing
- System Temperature Sensing Fan- CPU/Rear/Front Fan Tachometer
- CPU Quiet Fan (Allow CPU Fan Speed Auto-Adjust by CPU Temperature)
- CPU/Rear/Front Fan Multi-Speed Control Voltage- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, 1.05V_PCH, +BAT, 3VSB, 5VSB Support OS OSMicrosoft Windows
- Server 2008 R2 (x64)
- Server 2012 (x64)
Linux
- RedHat Enterprise Linux Server 5.5/6.4 (x32 and x64)
- CentOS 5.5 / 6.4 (x32 and x64)
- SUSE Enterprise Linux Server 11 SP1 (x32 and x64)
- FreeBSD 9.1 (x32/x64)
- Fedora core 18 (x64)
- Ubuntu 12.04/12.10 (x64)
Virtual
- VMWare ESXi 5.1 (Marvell SE9230 and Marvell SE9172 has no driver can support VMWare) Environment Temperature- Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
