AD2550R/U3S3

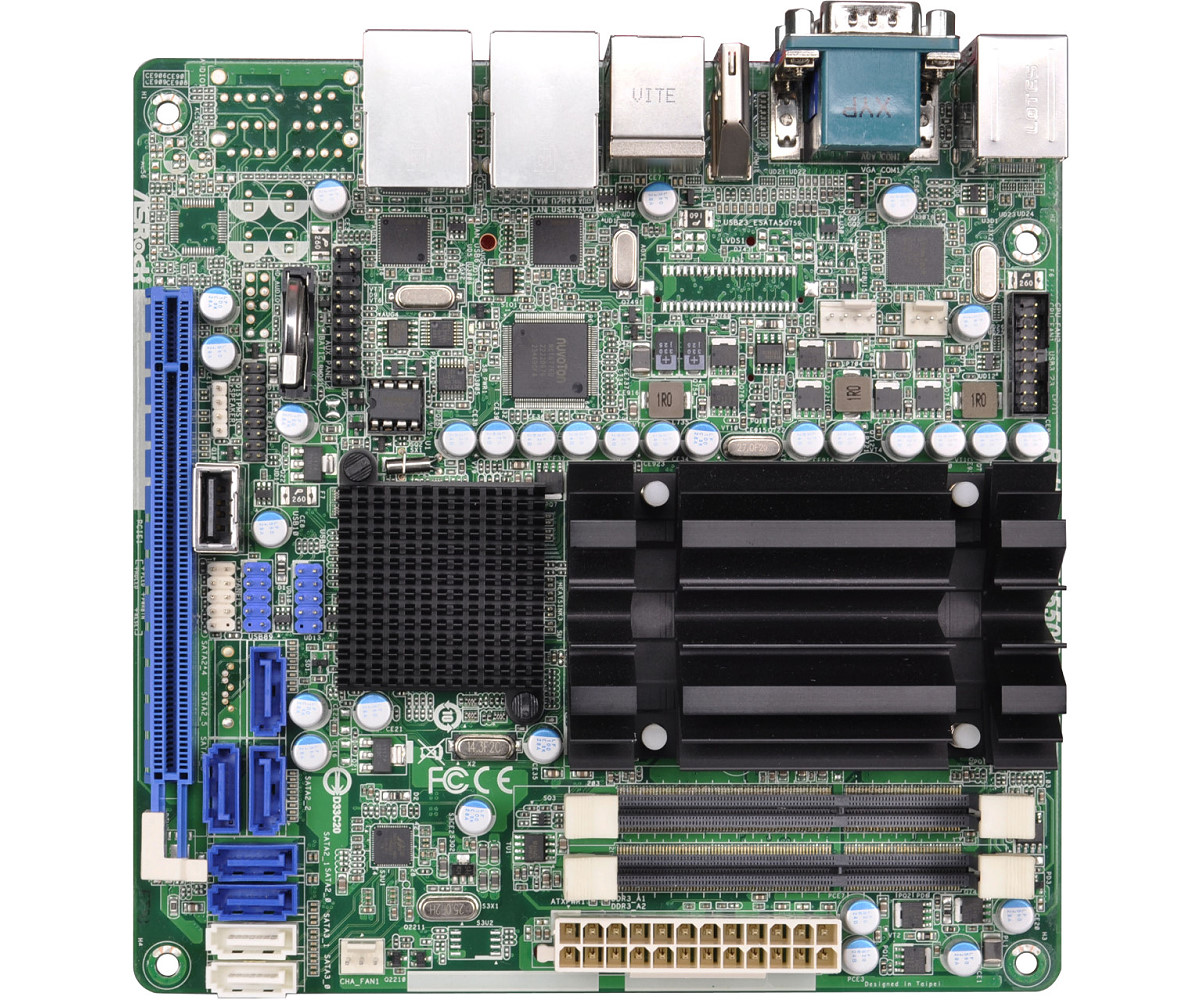

AD2550R/U3S3 image

  • ПараметриMini-ITX, Atom D2550, ICH10R chipset, SOCx soc.ATOM, DDR3-2 SO-DIMMs, 5xSATA 3G, 2+eSATAxSATA 6G, 2xGLAN, no IPMI
  • Други: Up to 4GB single channel SO-DIMM; 5 SATA2 3.0Gbps Ports support RAID 0, 1, 5, 10; 2 SATA3 6.0Gbps Ports control by Marvell SE9172; Support eSATA; Dual Intel 82574L Gigabit LAN ports (with Teaming function); 4 x USB 3.0 ports (2 rear ports +2 via headers )
  • Гаранция36m
  • Наличностс поръчка
  • Цена с включен ДДС: 314.07 BGN

Технически данни

MB Physical Status Form Factor- Mini ITX Dimensions- 6.7'' x 6.7'' (17.02 cm x17.02 cm) Processor System CPU- Intel® Dual-Core Atom D2550 Processor Socket- 1x micro-FCBGA11 Power Design- 1+1 Power Phase Design Chipset- Intel® ICH10R System Memory Capacity- 2 x SO-DIMM slots
- Support up to 4GB Type- Single Channel DDR3 memory technology
- Supports DDR3 1066 DIMM Voltage- 1.5V Expansion Slot PCIe 3.0 x 16- 1 slot (x1) mini PCIe- NA (optional) Storage SATA Controller- Intel® ICH10R : 5 x SATA2 3.0 Gb/s, support RAID 0, 1, 5, 10 Additional Storage Controller- Marvell SE9172; 2 x SATA3 6.0 Gb/s Ethernet Interface- Gigabit LAN 10/100/1000 Mb/s LAN Controller- 2 x Intel® 82574L
- Supports Wake-On-LAN
- Supports Energy Efficient Ethernet 802.3az
- Supports Dual LAN with Teaming functionSupports PXE Graphics Controller- Integrated (GMA3600) Output- Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz

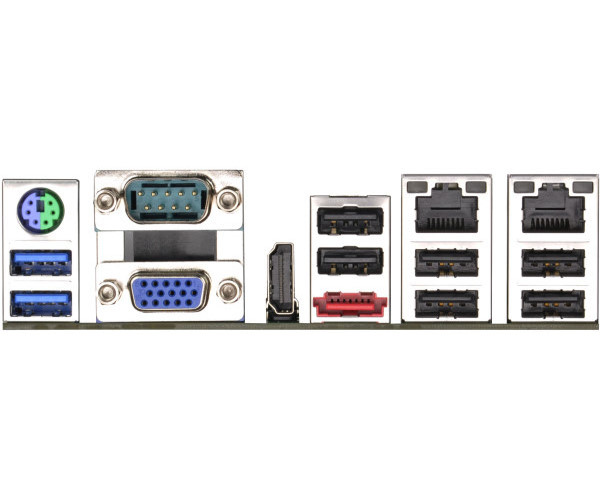

- Supports HDMI with max. resolution up to 1920x1200 @ 60Hz Rear Panel I/O PS/2 KB/Mouse- 1 VGA Port- D-sub x 1, HDMI x1 USB 2.0 Port- 6 USB 3.0 Port- 2 eSATA Port- 1 Lan Port- 2 x RJ45 Gigabit Ethernet LAN ports
- LAN Ports with LED (ACT/LINK LED and SPEED LED) Serial Port- 1 Internal Connector Auxiliary Panel Header- 1 (include chassis intrusion, location button & LED, front LAN LED) TPM Header- 1 Fan Header- 3 (1 x 4-pin, 2 x 3-pin) ATX Power- 1 (24-pin) USB 3.0 Header- 1 (each supports 2 USB 3.0) USB 2.0 Header- 2 (each supports 2 USB 2.0) Type A USB 2.0 Port- 1 LVDS Connector- NA (optional) Front Panel- 1 Speaker- 1 (4 pin) Onboard LED Standby PWR LED 5vsb- 1 System BIOS BIOS Type- 16Mb SPI Flash ROM
- AMI UEFI BIOS Hardware Monitor Temperature- CPU Temperature Sensing
- System Temperature Sensing Fan- CPU/Rear/Front Fan Tachometer
- CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
- CPU Fan Multi-Speed Control Voltage- Voltage Monitoring: +12V, +5V, +3V, CPU Vcore, memory Support OS OS- Microsoft Windows 7 / Home Server 2011 / Storage Server 2008 R2 / Server 2008 R2 and Fedora.

*64bit OS no graphic driver support, need to use inbox graphic driver.
Feature Unique Features- ASRock Instant Flash
- ASRock Crashless BIOS
- Boot Failure Guard (B.F.G.) Environment Temperature- Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
